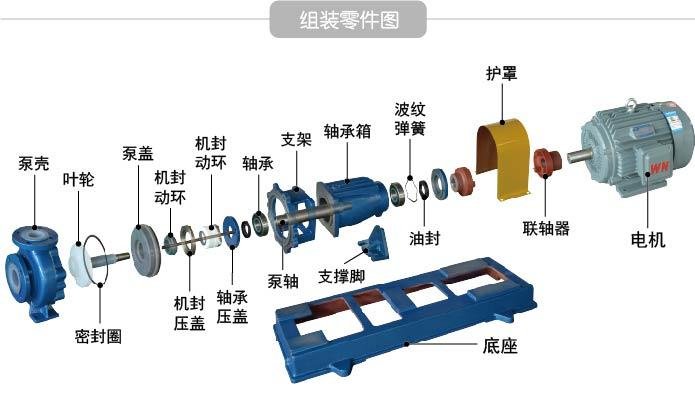

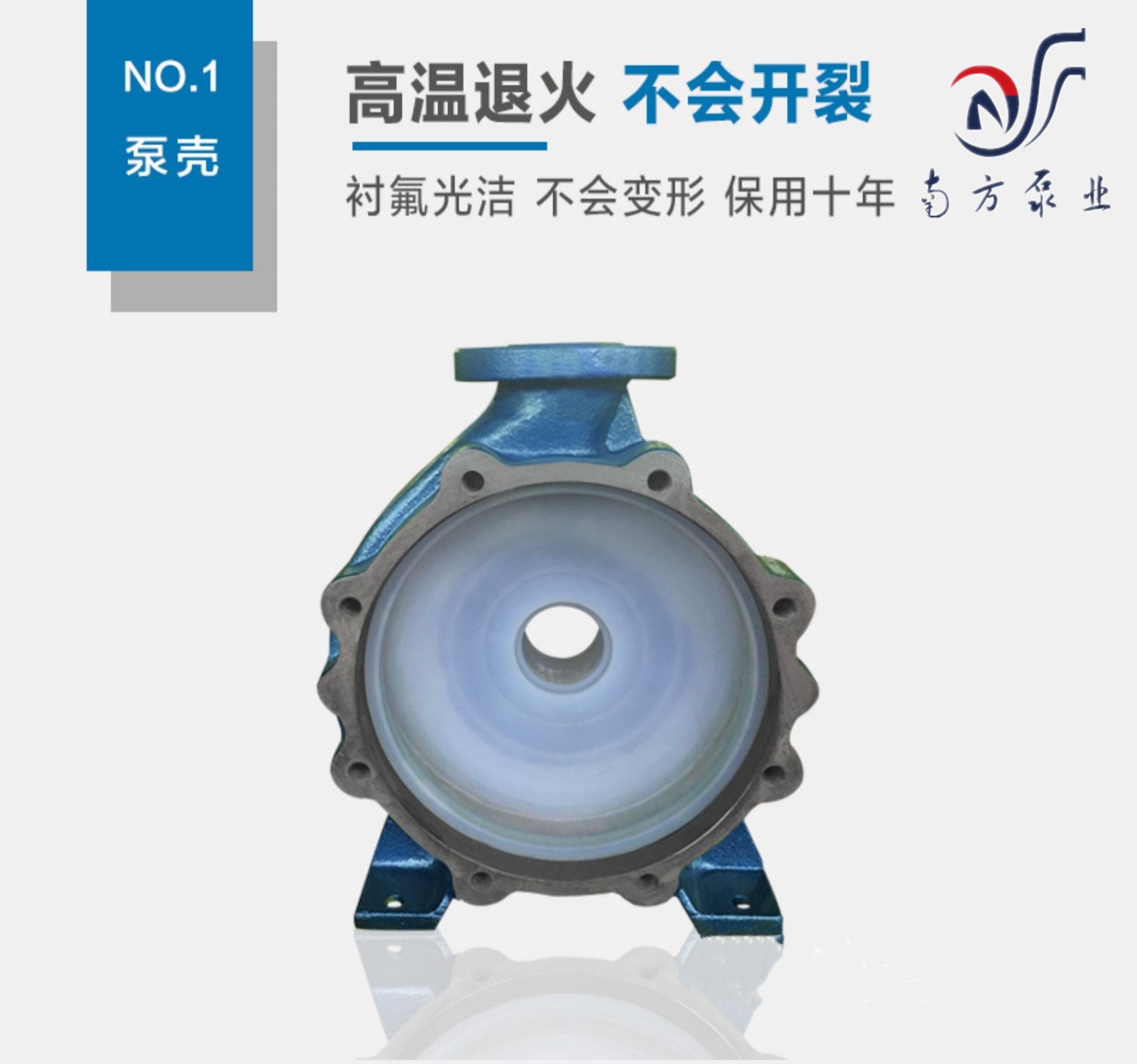

IHF單級單吸臥式氟塑料離心泵是按國際標準并結合非金屬泵的工藝設計制造。泵體采用金屬外殼內襯 聚全氣乙丙烯（F46、PFA）,泵蓋、葉輪和軸套均用金屬嵌件外包氣塑料整體燒結壓制而成，軸封采用外裝式先 進的波茨管機械密封，靜環選用氧化鋁陶瓷（或碳化硅），動環采用四氣填充材料，其耐腐耐磨密封性好。泵的進出口均采用鑄鋼體加固，以增強了泵的承溫和承壓性能。實際使用顯示，該泵具有耐腐、耐磨、耐高 溫、不老化、機械強度高、運轉平穩、結構先進合理、密封性能嚴格可靠、拆卸檢修方便、使用壽命長等優點。

IHF single-stage single-suction horizontal fluorine plastic centrifugal pump is according to the international standard and combined with non-metallic pump design and manufacturing process. Pump body adopts metal shell lining fep (F46, PFA), pump cover, impeller and shaft sleeve arc fluorine plastic with metal insert outsourcing whole sintering suppression and become, shaft seal mounted outside using advanced bellows mechanical seal, static choose 99.9% alumina or silicon carbide rings, ring with four fluorine filling materials, its excellent corrosion resistant seal, Import and export of pump adopts cast steel reinforcement, in order to enhance the bearing gentle pressure on the performance of the pump. Practical use shows that the pump has corrosion resistance, abrasion resistance, high temperature resistant, not aging, high

mechanical strength, smooth operation, reasonable structure, advanced, sealed performance is reliable, easy disassembly maintenance, long

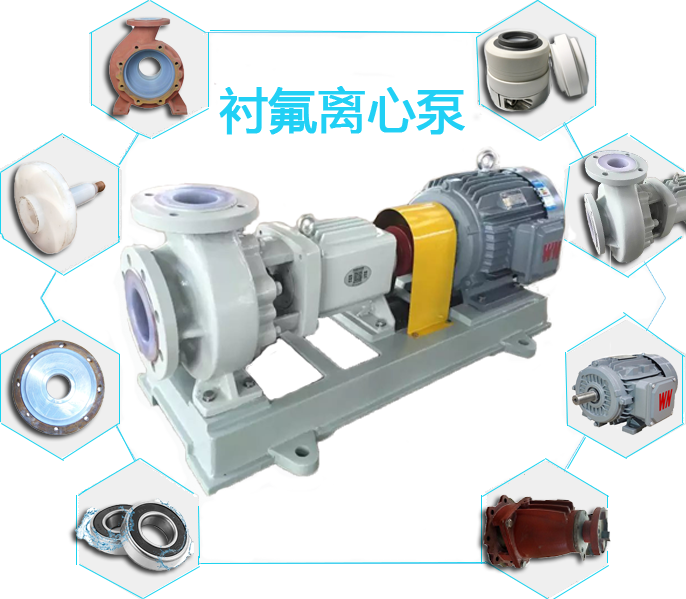

IHF氟塑料離心泵

口 徑：25-400mm

工作溫度：?20°C?180°C

流量范圍：1.6-2600m3/h

揚程范圍：5m-130m 材質范圍：內襯F46、PFA

Pump Diameter : 25mm- 400mm

Working Temperature :-20 -180

Flow Capacity Range . 1.6 in* /h-2600m^, /Ii

Pump Head Range: 5 m -130 m

Materials Range : Lining FEP(F46) .PFA
